Product Specification
Technical Sheet DownloadClick here to open
Product Description

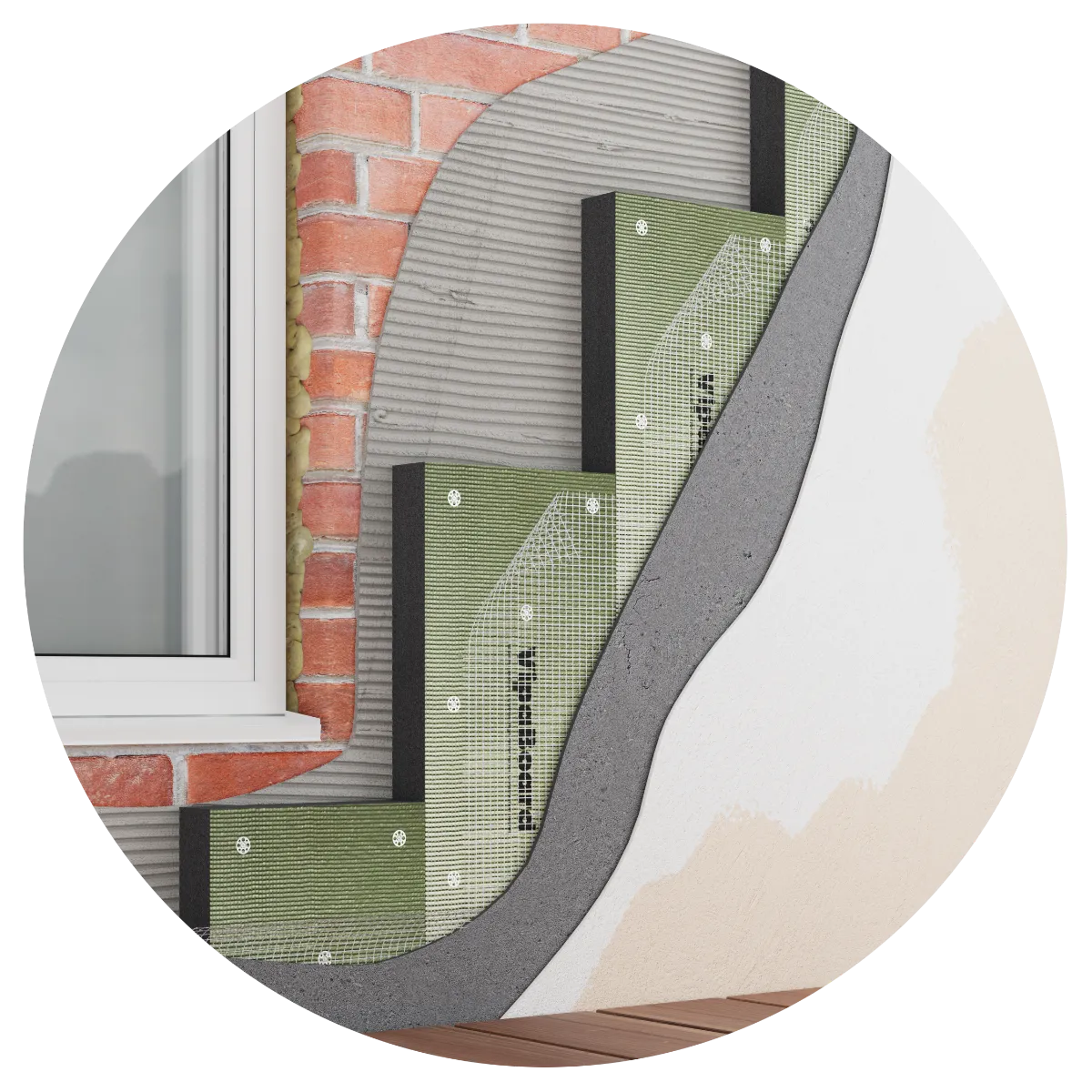

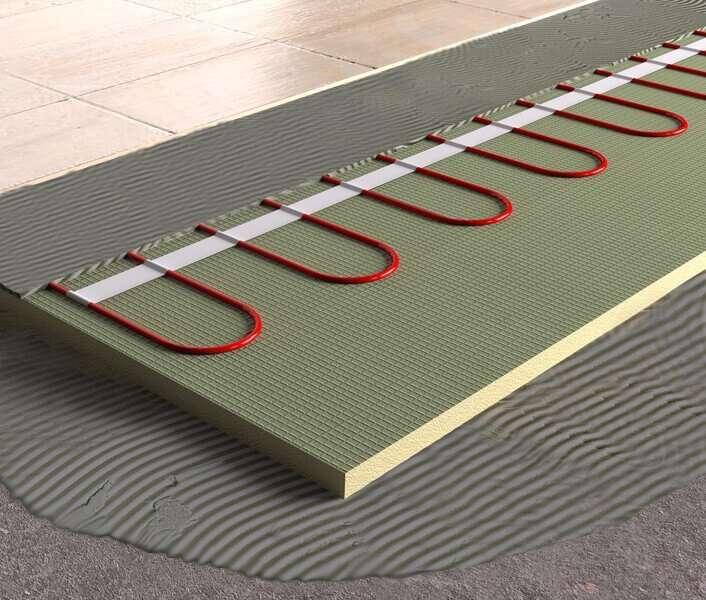

VipaBoard thermal construction boards, often referred to as tilebacker boards are manufactured using high density rigid extruded polystyrene as its insulation core. The rigid lightweight core has a factory applied reinforced cementitious coating which provides a hard wearing robust surface that is perfect for the application of tiles/plaster and synthetic render. VipaBoards are produce in a wide range of thickness and sizes. They are used extensively within the construction industry for a wide range of applications such as insulating beneath electrical underfloor heating, as waterproof wall and floor boards for the creation of wetrooms and steamrooms, and for external or damp environments such as basements, garages and conservatories.
Please referred to these fixing instructions for full fixing advice.
Typical fixing applications:

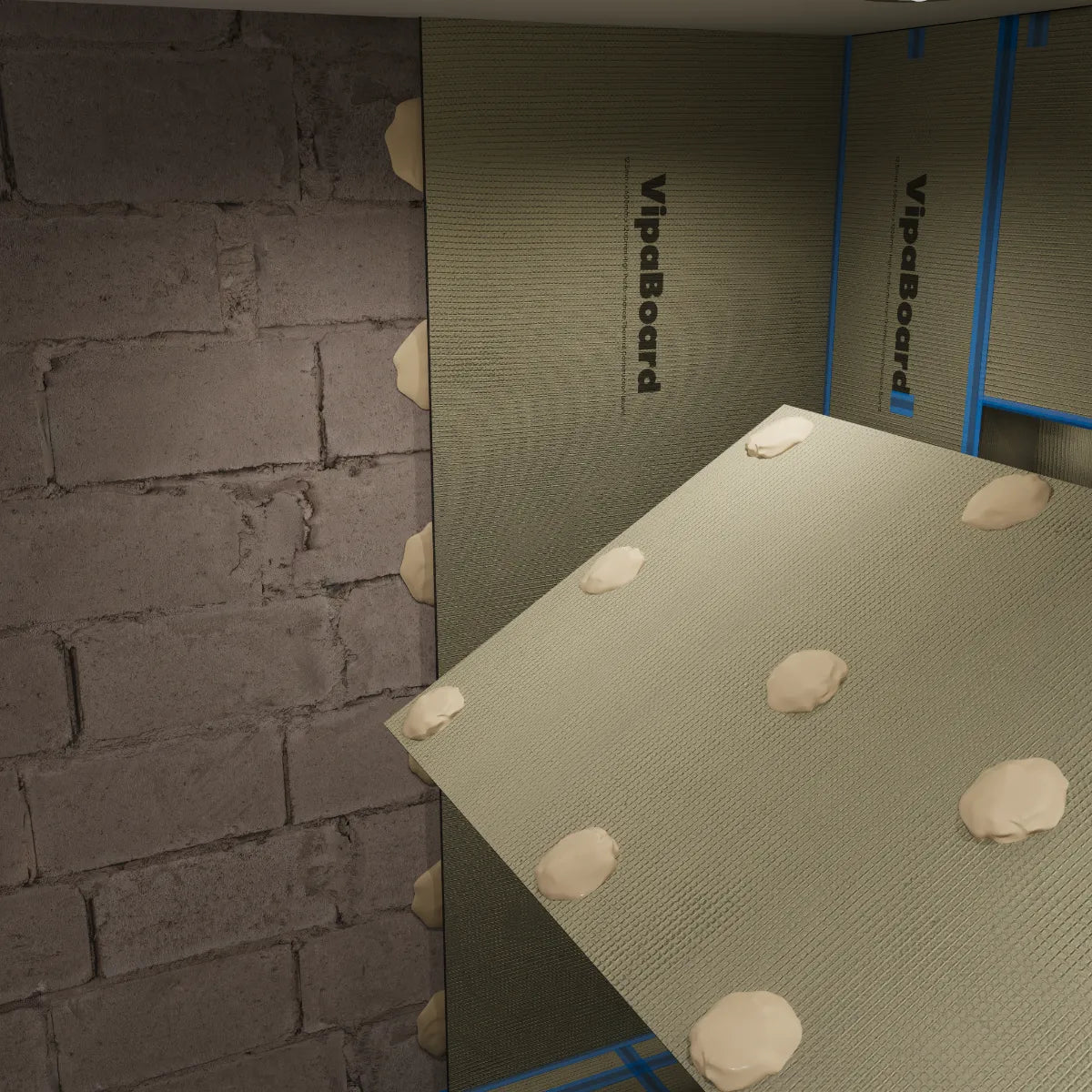

Fixing directly onto internal stud framework and onto stud framework lined with plasterboard:
Note: VipaBoard must be 10mm thick or greater for use over unlined and plasterboard lined stud framework.
- 21 fixings per m2 based on 300mm stud centres for a 10mm thick VipaBoard
- 17 fixings per m2 based on 400mm stud centres for a 12.5 mm thick VipaBoard
- 17 fixings per m2 based on 600mm stud centres for a 20mm+ thick VipaBoard
(fixing quantities may be reduced if washers are used to span adjacent VipaBoards)
Fixing to Internal stud framework pre lined with Plywood
Note: 4mm thick VipaBoard is not suitable for fixing onto walls VipaBoard 6mm thick and above can be fixed over plywood lined stud framework
- 38 fixings per m2 Fixings for 6mm thick VipaBoard
- 21 fixings per m2 Fixings for 10 mm thick VipaBoard
(fixing quantities may be reduced if washers are used to span adjacent VipaBoards)
